Context Menu API

An API mod for X4: Foundations that extends the modding surface beyond what SirNukes Mod Support APIs covers, targeting menus and context frame modes not exposed by that API. Currently it supports the Information panel context frames on Map screen, and the Personnel Management, Inventory, Spacesuit Upgrades, and Transaction Log context frames on Player Info screen.



Overview

The mod intercepts createContextFrame on the supported menus and fires a signal before the frame is built. Consumers respond synchronously (within the same MD tick / Lua call) by appending entries via the builder API.

Two integration paths exist, both with equivalent capabilities:

• MD API - for Mission Director scripts. Uses Get_Actions / Add_Action cue signals.
• Lua API - for Lua UI scripts. Register a callback via cmAPI.registerLuaCallback(fn); the function returns a list of entry tables, which the API renders using the same pipeline as MD entries.

Requirements

• X4: Foundations: Version 8.00HF4 or higher and UI Extensions and HUD: Version v8.0.4.x or higher by kuertee:
  • Available on Nexus Mods: UI Extensions and HUD
• X4: Foundations: Version 9.00 beta 3 or higher and UI Extensions and HUD: Version v9.0.0.0.3 or higher by kuertee.
• Mod Support APIs: Version 1.95 or higher by SirNukes:
  • Available on Steam: SirNukes Mod Support APIs
  • Available on Nexus Mods: Mod Support APIs
• Options Helper: Version 1.0 or higher by Chem O`Dun:
  • Available on Steam: Options Helper
  • Available on Nexus Mods: Options Helper

Installation

• Steam Workshop: Context Menu API
• Nexus Mods: Context Menu API

Guide

Let's read next comments.

Extension options

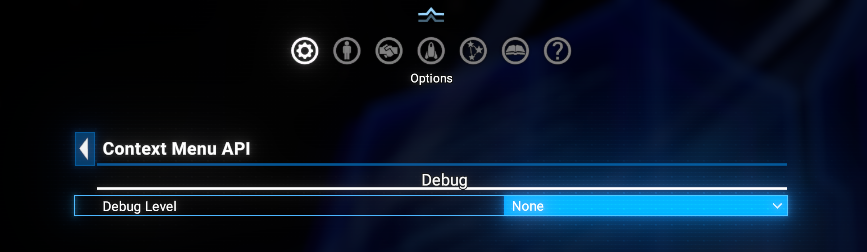

Options Menu > Extension options > Context Menu API:

• Debug mode: Controls log verbosity. Options: None (default), Debug, Trace. Use Debug or Trace only when troubleshooting - these write to the game log on every refresh.

Spoiler

Show

Credits

• Author: Chem O`Dun, on Nexus Mods and Steam Workshop
• "X4: Foundations" is a trademark of Egosoft.

Acknowledgements

• EGOSOFT - for the X series.
• kuertee - for the UI Extensions and HUD that makes this extension possible.
• SirNukes - for the Mod Support APIs that power the UI hooks and options menu.

Changelog

[ChemODun]

MD API

Flow

1. Your cue listens to md.Context_Menu_API.Get_Actions
2. Check event.param.$mode (and other fields) to decide what to add
3. Call md.Context_Menu_API.Add_Action one or more times (synchronously)
4. The API builds the frame; user clicks trigger your $callback cue

Get_Actions - event fields

• $menuName (string) - source menu ("MapMenu")
• $mode (string) - context frame mode, e.g. "info_context", "trade" (see Vanilla context menu modes below); changes at every sub-menu level
• $rootMode (string) - the original vanilla mode that opened the menu; stays constant across all sub-menu levels (same as $mode at the root level)
• Additional mode-specific string fields (e.g. $component, $entity, $person, $inv_ware, $weaponmacro, ...) - see per-mode docs below

Add_Action - entry fields

• $type - entry type: "menuItem" (default), "subMenu", "separator", "header"
• $id (string) - unique ID; required for menuItem / subMenu / header; for menuItem auto-derived from $text if omitted and $callback is set
• $text (string) - display label
• $icon (string, optional) - icon name (X4 icon set); prepended to $text as \027[icon] text
• $text2 (string, optional) - right-side secondary text; for subMenu the API fills in > if omitted
• $textColor (string, optional) - Color key for the main text (e.g. 'text_positive'); default: 'text_normal'
• $text2Color (string, optional) - Color key for $text2; default: 'text_normal'
• $mouseOver (string, optional) - tooltip text shown on hover
• $mouseOverIcon (string, optional) - icon prepended to the tooltip text
• $callback (cue reference) - cue to call when this menuItem is clicked
• $echo (any, optional) - arbitrary value passed back in event.param.$echo of the callback
• $active (bool) - whether the entry is clickable; default: true (auto-set to false when no $callback)
• $keepOpen (bool, optional) - if true, the context menu stays open after the click; default: menu closes

Callback event.param fields

The callback cue receives all original Get_Actions fields, i.e.:

• $menuName (string) - source menu ("MapMenu")
• $mode (string) - same as in Get_Actions
• $rootMode (string) - same as in Get_Actions
• Additional mode-specific string fields - same as in Get_Actions

plus:

• $id - the action ID that was clicked
• $echo - the value of $echo passed to Add_Action (if any) or null.

Minimal example - append to an existing mode

Code: Select all

<cue name="On_CMA_Get_Actions" instantiate="true">
    <conditions>
        <event_cue_signalled cue="md.Context_Menu_API.Get_Actions" />
    </conditions>
    <actions>
        <do_if value="event.param.$mode == 'info_context' and event.param.$entity?">
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[
                    $type     = 'menuItem',
                    $text     = 'My Action',
                    $icon     = 'order_follow',
                    $callback = My_Callback,
                    $echo     = event.param.$entity,
                ]" />
        </do_if>
    </actions>
</cue>

<cue name="My_Callback" instantiate="true">
    <conditions>
        <event_cue_signalled />
    </conditions>
    <actions>
        <!-- event.param.$echo is the entity from above -->
        <debug_text text="'clicked on entity: %s'.[event.param.$echo]" />
    </actions>
</cue>

Multi-level sub-menus (MD)

A subMenu entry navigates to a new blank frame identified by $id. The API manages a navigation stack and injects a < Back button automatically. Supply a header as the first entry of a custom mode to label the frame.

Code: Select all

<cue name="On_CMA_Get_Actions" instantiate="true">
    <conditions>
        <event_cue_signalled cue="md.Context_Menu_API.Get_Actions" />
    </conditions>
    <actions>

        <!-- Append sub-menu trigger to the vanilla frame -->
        <do_if value="event.param.$mode == 'info_context'">
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[$type = 'separator']" />
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[$type = 'subMenu', $text = 'My Tool', $id = 'mytool_main']" />
        </do_if>

        <!-- Define the custom mode contents (header + items) -->
        <do_elseif value="event.param.$mode == 'mytool_main'">
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[$type = 'header', $text = 'My Tool']" />
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[$type = 'menuItem', $text = 'Do Something', $id = 'mytool_do', $callback = My_Action]" />
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[$type = 'subMenu', $text = 'More Options', $id = 'mytool_sub']" />
        </do_elseif>

        <do_elseif value="event.param.$mode == 'mytool_sub'">
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[$type = 'header', $text = 'More Options']" />
            <signal_cue_instantly cue="md.Context_Menu_API.Add_Action"
                param="table[$type = 'menuItem', $text = 'Option A', $id = 'mytool_a', $callback = My_Action]" />
        </do_elseif>

    </actions>
</cue>

Note: Do NOT add a back entry manually - the API inserts it automatically for every custom mode, right after the leading header (if present).

[ChemODun]

Lua API

Flow (Lua)

1. At init time, call cmAPI.registerLuaCallback(fn)
2. fn(menuName, mode, rootMode, data) is called synchronously on every whitelisted context open
3. Return a list of entry tables (same fields as MD Add_Action, with onClick instead of $callback)
4. The API renders the entries; user clicks invoke your onClick function directly

registerLuaCallback - signature

Code: Select all

local cmAPI = require("extensions.context_menu_api.ui.context_menu_api")
cmAPI.registerLuaCallback(function(menuName, mode, rootMode, data)
    -- return a list of entry tables, or {} to add nothing
end)

• menuName (string) - source menu name, e.g. "MapMenu"
• mode (string) - current context frame mode (changes at sub-menu levels)
• rootMode (string or nil) - original vanilla mode that opened the menu; constant across sub-menu levels
• data (table or nil) - raw context data table; fields mirror the MD param fields but as Lua values (data.component and data.entity are uint64 cdata; data.person is the raw NPCSeed cdata, not yet resolved to an entity)

The callback is called for every whitelisted open across all supported menus. Filter by menuName and mode inside your callback as needed.

Entry table fields

Entry tables mirror the MD Add_Action fields, with two differences:

• Field names are plain Lua strings (no $ prefix)
• Use onClick instead of callback + echo
• type (string) - "menuItem" (default), "subMenu", "separator", "header"
• id (string) - required for menuItem and subMenu; entries without id are silently skipped
• text (string) - display label
• icon (string, optional) - X4 icon name; prepended to text
• text2 (string, optional) - right-side secondary text; subMenu defaults to >
• textColor (string, optional) - color key, e.g. "text_positive"
• text2Color (string, optional) - color key for text2
• mouseOver (string, optional) - tooltip text
• mouseOverIcon (string, optional) - icon prepended to the tooltip
• active (bool) - whether the entry is clickable; default true
• keepOpen (bool, optional) - if true, menu stays open after click; default false
• onClick (function) - called as onClick(data, mode) when the entry is clicked; data and mode are the same values passed to the callback

Note: onClick closures already capture any context the caller needs. There is no echo field - closures are the Lua-native equivalent.

Minimal example (Lua) - append to an existing mode

Code: Select all

local cmAPI = require("extensions.context_menu_api.ui.context_menu_api")

cmAPI.registerLuaCallback(function(menuName, mode, rootMode, data)
    if mode ~= "info_context" then return {} end
    return {
        {
            type    = "menuItem",
            id      = "mymod_action",
            text    = "My Lua Action",
            icon    = "order_follow",
            onClick = function(data, mode)
                DebugError("clicked entity: " .. tostring(data.component))
            end,
        },
    }
end)

Multi-level sub-menus (Lua)

Sub-menu navigation works identically to MD. Return a subMenu entry with an id; define the contents of that custom mode in the same callback by checking mode.

Code: Select all

cmAPI.registerLuaCallback(function(menuName, mode, rootMode, data)
    if mode == "info_context" then
        return {
            { type = "subMenu", id = "mytool_main", text = "My Tool" },
        }
    elseif mode == "mytool_main" then
        return {
            { type = "header", text = "My Tool" },
            { type = "subMenu",  id = "mytool_sub",  text = "More Options" },
            {
                type    = "menuItem",
                id      = "mytool_do",
                text    = "Do Something",
                onClick = function(data, mode) DebugError("did something") end,
            },
        }
    elseif mode == "mytool_sub" then
        return {
            { type = "header", text = "More Options" },
            {
                type    = "menuItem",
                id      = "mytool_a",
                text    = "Option A",
                onClick = function(data, mode) DebugError("option A") end,
            },
        }
    end
    return {}
end)

The < Back button is inserted automatically. Do NOT return a back entry.

[ChemODun]

Supported game Menus/Screens and Modes

These are the two Menus(screens) are supported by the API: MapMenu (the main map screen) and PlayerInfoMenu. Each menu has a set of supported modes (context frame types).

Supported modes per Menu with attached data fields

These modes use a single-column frame and are whitelisted in the API. The Get_Actions event fires only for these modes. Entry injection and custom sub-menus work fully.

MapMenu

When mode is equal to "info_context" - the most useful entry point. Opens when the player right-clicks a crew member, pilot, manager, or ship trader in the info panel.

On pilots/managers/traders:

• $type (string) - "entity"
• $component (component or null) - controllable (ship or station) as MD component reference
• $entity (component or null) - pilot or manager NPC as MD component reference
• $instance (string or null) - "left" or "right" for dual-panel frames; null otherwise
• $xoffset (number) - mouse X offset from the default frame position;
• $yoffset (number) - mouse Y offset from the default frame position

On crew members and other personnel:

• $type (string) - "person"
• $component (component or null) - controllable (ship or station) as MD component reference
• $person (NPCSeed or null) - crew member as raw NPCSeed/npctemplate reference
• $instance (string or null) - "left" or "right" for dual-panel frames; null otherwise
• $xoffset (number) - mouse X offset from the default frame position;
• $yoffset (number) - mouse Y offset from the default frame position

On loadout items (Equipment):

• or $weaponmacro (string or null) - weapon macro string when a weapon row was clicked
• or $equipmentmacro (string or null) - equipment/deploy macro string when an equipment row was clicked
• or $software (string or null) - software macro string when a software row was clicked

On pilot/captain inventory items:

• $inv_ware (string or null) - ware macro string when an inventory item row was clicked

PlayerInfoMenu

When mode is equal to inventory - context actions for a selected ware in the player's inventory or spacesuit equipment.

• $ware (string) - ware macro string of the selected item, e.g. "modpart_weaponchamber_t2"
• $name (string) - localized display name of the ware, e.g. "Advanced Weapon Chamber"
• $amount (number) - quantity of the ware currently held
• $price (number) - unit price in credits (may be 0 or 1 for non-tradeable items)
• $selectedWares (array) - list of ware macro strings currently selected (usually one element matching $ware)

When mode is equal to personnel - context actions for a selected crew member, pilot, manager, or trader in the personnel list.

On pilots/managers/traders:

• $type (string) - "entity"
• $subMode (string) - personnel sub-mode, e.g. "personnel_employee"
• $component (component) - controllable (ship or station) as MD component reference
• $container (number) - same UniverseID as $component (raw integer before MD resolution)
• $containername (string) - display name of the ship or station
• $entity (component) - the NPC as MD component reference
• $name (string) - NPC display name
• $roleid (string) - role identifier, e.g. "manager", "aipilot", "shiptrader"
• $rolename (string) - localised role display name, e.g. "Manager", "Captain", "Ship trader"
• $combinedskill (number) - combined skill value (0–100)
• $skill (number) - filtered/sorted skill value (same as $combinedskill when no role filter is active)

On crew members and other personnel:

• $type (string) - "person"
• $subMode (string) - personnel sub-mode, e.g. "personnel_employee"
• $component (component) - controllable (ship or station) as MD component reference
• $container (number) - same UniverseID as $component (raw integer before MD resolution)
• $containername (string) - display name of the ship or station
• $person (npctemplateentry) - crew NPC resolved from NPCSeed; access .name, .role.name, etc.
• $name (string) - NPC display name
• $roleid (string) - role identifier, e.g. "service", "marine", "unassigned"
• $rolename (string) - localised role display name, e.g. "Service crew"
• $combinedskill (number) - combined skill value (0–100)
• $skill (number) - filtered/sorted skill value (same as $combinedskill when no role filter is active)

When mode is equal to transactionlog - context actions for a selected transaction log entry.

• $entryid (number) - unique ID of the log entry
• $eventtype (string) - internal event type, e.g. "orderqueue_add", "orderqueue_remove"
• $eventtypename (string) - localised event type name, e.g. "Trade Order", "Profit from Trade Orders"
• $active (number) - 1 if the entry is currently active
• $complete (number) - 1 if the transaction is complete, 0 if still pending
• $money (number) - money change for this entry in credits (negative = paid, positive = received)
• $amount (number) - ware quantity involved; 0 for non-ware events
• $price (number) - unit price in Cr; 0 for non-ware events
• $ware (string) - ware id string, e.g. "siliconcarbide"; empty string for non-ware events
• $description (string) - human-readable summary of the transaction; empty for completed entries
• $partner (component or null) - trading partner as MD component reference
• $partnername (string) - display name of the trading partner
• $contextObject (component or null) - context object as MD component reference (often same as $partner)
• $contextObjectName (string) - display name of the context object
• $buyer (component or null) - buyer component; may be null when not applicable
• $seller (component or null) - seller component; may be null when not applicable
• $tradeentry (number) - trade entry reference ID; 0 if none
• $tradeentrytype (string) - trade entry type string, e.g. "trade"; empty if none
• $tradeentrytypename (string) - localised trade entry type name, e.g. "Trade Payment", "Unknown"
• $destroyedpartner (number) - 1 if the partner was destroyed during the trade
• $time (number) - game time (seconds) when the entry was recorded

[ChemODun]

Excluded modes

These modes currently does not supported by the API. Mostly because they are complex windows with a lot of UI elements, i.e. they are a far beyond the scope of a simple context menu.
It's support can be added in the future if there's demand, but for now they are listed here for reference.
No Get_Actions event is fired for these modes; the API passes through transparently and does not interfere with them.

MapMenu excluded modes

These modes are not in the whitelist. No Get_Actions event is fired; the API passes through transparently. They are documented here for reference.

• neworder - order selection list when assigning a new order to a ship (1-column).

possible additional fields: $instance (string, which panel side)

• set_orderparam_formationshape - formation shape picker for an order parameter (1-column).

possible additional fields: $index (number, parameter index), $instance (string)

• searchfield - search input overlay (1-column). No meaningful data fields.
• select - generic single-component selection picker (1-column).

possible additional fields: $component (string, UniverseID of the pre-selected component)

• set_orderparam_sector - sector picker for an order parameter (3-column table).

possible additional fields: $index (number, parameter index in the order), $instance (string)

• set_orderparam_ware - ware picker for an order parameter (3-column table).

possible additional fields: $index (number, parameter index), $instance (string)

• orderqueuesetting - order queue settings panel (2-column table). No meaningful data fields.
• filter_multiselectlist - multi-select filter picker inside the order queue (3-column table).

possible additional fields: $id (string, filter setting ID), $value (any scalar, current value)

• trade - direct trade dialog between ship and station (9-column table).

possible additional fields: $component (string, station UniverseID), $currentShip (string, ship UniverseID), $shadyOnly (bool), $wareexchange (bool)

• tradeloop - trade loop configuration (3-column table).

possible additional fields: $component (string, station UniverseID), $currentShip (string, ship UniverseID), $loop (string, loop type)

• mission - mission briefing / accept context frame (3-column table).

possible additional fields: $missionid (string, uint64 mission ID), $isoffer (bool), $name (string), $type (string, main mission type), $subtype (string), $threadtype (string), $difficulty (number), $rewardmoney (number, credits × 100), $rewardtext (string), $timeout (number, seconds, -1 if none), $abortable (bool), $onlinechapter (string), $onlineID (string), $groupID (string)

• sellships - sell ships dialog at a shipyard (2-column table).

possible additional fields: $shipyard (string, shipyard UniverseID)

• dropwares - drop / jettison wares from a pilot's inventory (3-column table).

possible additional fields: $mode (string, sub-mode e.g. "inventory"), $entity (string, pilot UniverseID)

• weaponconfig - weapon loadout configuration for a ship (2-column table).

possible additional fields: $component (string, ship UniverseID), $orderidx (number), $usedefault (bool), $instance (string)

• boardingcontext - boarding operation targeting dialog (9-column table).

possible additional fields: $target (string, target UniverseID), $boarders (string, boarding ship UniverseID)

• crewtransfer - crew transfer between two ships (11-column table).

possible additional fields: $leftShip (string, UniverseID), $rightShip (string, UniverseID)

• hire - hire a crew member or captain (2-column table).

possible additional fields: $hireObject (string, UniverseID of the object being hired for)

• rename - rename a ship, station, or fleet (2-column table).

possible additional fields: $component (string, UniverseID), $fleetrename (bool, true when renaming a fleet)

• changelogo - change hull decal / logo on a ship or station (5-column table).

possible additional fields: $component (string, UniverseID)

• userquestion - yes/no confirmation dialog; used for many different actions (5-7 columns depending on sub-mode). The $mode field indicates which question is being asked:
• $mode = "discardplanneddefaultbehaviour" - discard planned order
• $mode = "removeplot" - destroy build plot; also has $station (string, UniverseID)
• $mode = "clearlogbook" - clear logbook entries; also has $instance (string)
• $mode = "markashostile" - mark target as hostile; also has $controllable (string, UniverseID)
• $mode = "removebuildstorage" - remove build storage; also has $buildstorage (string, UniverseID)
• $mode = "fireindividual" - fire a specific crew member; also has $controllable (string), $entity (string), $person (string), $instance (string)
• $mode = "fireall" - fire all crew; also has $controllable (string, UniverseID), $instance (string)
• userquestion_multiverse - multiverse-specific yes/no confirmation. No meaningful data fields.

Note: Venture and multiplayer modes (onlinemode, onlinereward, ventureconfig, venturecreateparty, venturepatron, venturereport, ventureteammembercontext, venturecontactcontext, venturefriendlist, ventureoutcome, ventureshipselection) are not accessible when the game is modded and are listed here for completeness only.

PlayerInfoMenu excluded modes

• dropwares - drop / jettison wares from a pilot's inventory (3-column table via Helper.createDropWaresContext).

Note: Venture modes (venturecontactcontext, venturefriendlist, venturereport) are not accessible when the game is modded.

[ChemODun]

Changelog

[1.00] - 2026-05-14

• Added
  • Initial public version.
