Botpwned · Post by **Botpwned** » Wed, 15. Sep 10, 02:49

God Only if this Thread existed 8 or 9 months ago when I was having troubles building X3 ships then I might have actually been successful in the past 4 pages well....it is all the problems I had answered woot So gonna get back to modeling only thing that stopped me before was the damn textures not working in game....oh and scene files.

killerog · Post by **killerog** » Wed, 15. Sep 10, 03:57

One thing I forgot to mention is change the 0 to what ever the entry number is. For example heres one of my models :

Code: Select all

MATERIAL6: 0; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;


MATERIAL6: 1; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.39999; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;3.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;terran_platesheet_white_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.2; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.dds; t_BumpTexture;SPTYPE_STRING;terran_platesheet_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.0; t_SpecularTexture;SPTYPE_STRING;terran_platesheet_spec.dds; t_LightMapTexture;SPTYPE_STRING;NONE_BLACK.dds; t_OcclusionTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_OCCL_DECAL.dds; g_MatOcclStr;SPTYPE_FLOAT;2.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;5.0; p_TexTiling;SPTYPE_FLOAT;100.0; t_CubeMapTexture;SPTYPE_STRING;F:\SRC\X3.5\[Assets]\Terran\x3.5 Textures\Textures\envmap.dds; g_FresnelExpon;SPTYPE_FLOAT;3.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;1.0;0.639206;0.066666;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.458817;0.631363;0.643127;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;36.0; g_Color_HighlightPower;SPTYPE_FLOAT;44.0; g_Color_Weighting;SPTYPE_FLOAT;0.599991; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;112; technique;SPTYPE_LONG;0;

The correct way to do this is before you start texturing import a ego ship and delete the model, this sets up the material editor.

Post the new code up if it still is not working and ill take a look again.

Anubitus · Post by **Anubitus** » Wed, 15. Sep 10, 14:48

Botpwned wrote:God Only if this Thread existed 8 or 9 months ago when I was having troubles building X3 ships then I might have actually been successful in the past 4 pages well....it is all the problems I had answered woot So gonna get back to modeling only thing that stopped me before was the damn textures not working in game....oh and scene files.

lol, yea well, i started from zero zilch nada nothing knowlage of modding ships till the point where i can get floating guns with engines detatched to them into the game now..

all you can do is search on the web and ask ppl and then be determent to reach your goal.. one day ill be making shippacks.. i swear..

thanks killerog, ill try again..

just for a test i re-imported the scene i extracted back into max, for some reason all i get is a box in the middle of my screen with all special parts.. some have their pivots wrong and eveything..

i bet this isnt normal..

screenshot:
[ external image ]

you can see that the engine emitters and the aft turret/camera have their pivots placed wrong..

btw: this is what my scene looks like befor i export it into bod format..

[ external image ]

fully textured and the pivots and turret are placed into the correct direction..

Anubitus · Post by **Anubitus** » Wed, 15. Sep 10, 15:37

killerog wrote:One thing I forgot to mention is change the 0 to what ever the entry number is.

i suppose the "0" you mention is the one right after "MATERIAL6"..?

so that would mean

turn this:

Code: Select all

MATERIAL6: 0; 0; metal_argon_simple_plating_v5_diff.dds; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; metal_argon_simple_plating_bump.dds;30; NULL;100; NULL;100; NULL;0; // Material #648
MATERIAL6: 1; 0; metal_argon_exhaust_source_01_light.dds; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; metal_argon_exhaust_source_01_bump.dds;30; metal_argon_exhaust_source_01_light.dds;100; metal_argon_exhaust_source_01_spec.dds;100; NULL;0; // Material #671
MATERIAL6: 2; 0; glass_variations_diff.dds; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; NULL;30; NULL;100; NULL;100; NULL;0; // Material #705

into this:

Code: Select all

MATERIAL6: 0; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;

MATERIAL6: 1; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;

MATERIAL6: 2; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;

is this correct..?

thanks for the help killerog

Topcross · Post by **Topcross** » Wed, 15. Sep 10, 15:49

Yup, that should work.

Anubitus · Post by **Anubitus** » Wed, 15. Sep 10, 16:53

still invissible..

here is a part my body file.. pls take a look at it and tell me what is wrong.. i must be doing something wrong.. misunderstand something..

Code: Select all

/# Exported with dbox2 1.11 from interceptor5e.max at 15/09/2010 16:42:37

MATERIAL6: 0; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;
MATERIAL6: 1; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;
MATERIAL6: 2; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;

and this is what is exported from max..

Code: Select all

MATERIAL6: 0; 0; metal_argon_simple_plating_v5_diff.dds; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; metal_argon_simple_plating_bump.dds;30; NULL;100; NULL;100; NULL;0; // Material #648
MATERIAL6: 1; 0; metal_argon_exhaust_source_01_light.dds; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; metal_argon_exhaust_source_01_bump.dds;30; metal_argon_exhaust_source_01_light.dds;100; metal_argon_exhaust_source_01_spec.dds;100; NULL;0; // Material #671
MATERIAL6: 2; 0; glass_variations_diff.dds; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; NULL;30; NULL;100; NULL;100; NULL;0; // Material #705

Topcross · Post by **Topcross** » Wed, 15. Sep 10, 17:24

Those aren't X3 materials, check your materialer editor in 3ds max, does it say your materials are 'standard' or 'X3 material'?

killerog · Post by **killerog** » Wed, 15. Sep 10, 19:09

http://i45.photobucket.com/albums/f60/k ... /step1.jpg

Image 1 shows what you should have in the mat editor once you import any ship with X3 mat entries.

Drag any one of these onto your ship. Then replace that texture with your one (see image 2)

Also make sure you have the same settings as I do for dbox

http://i45.photobucket.com/albums/f60/k ... /step2.jpg

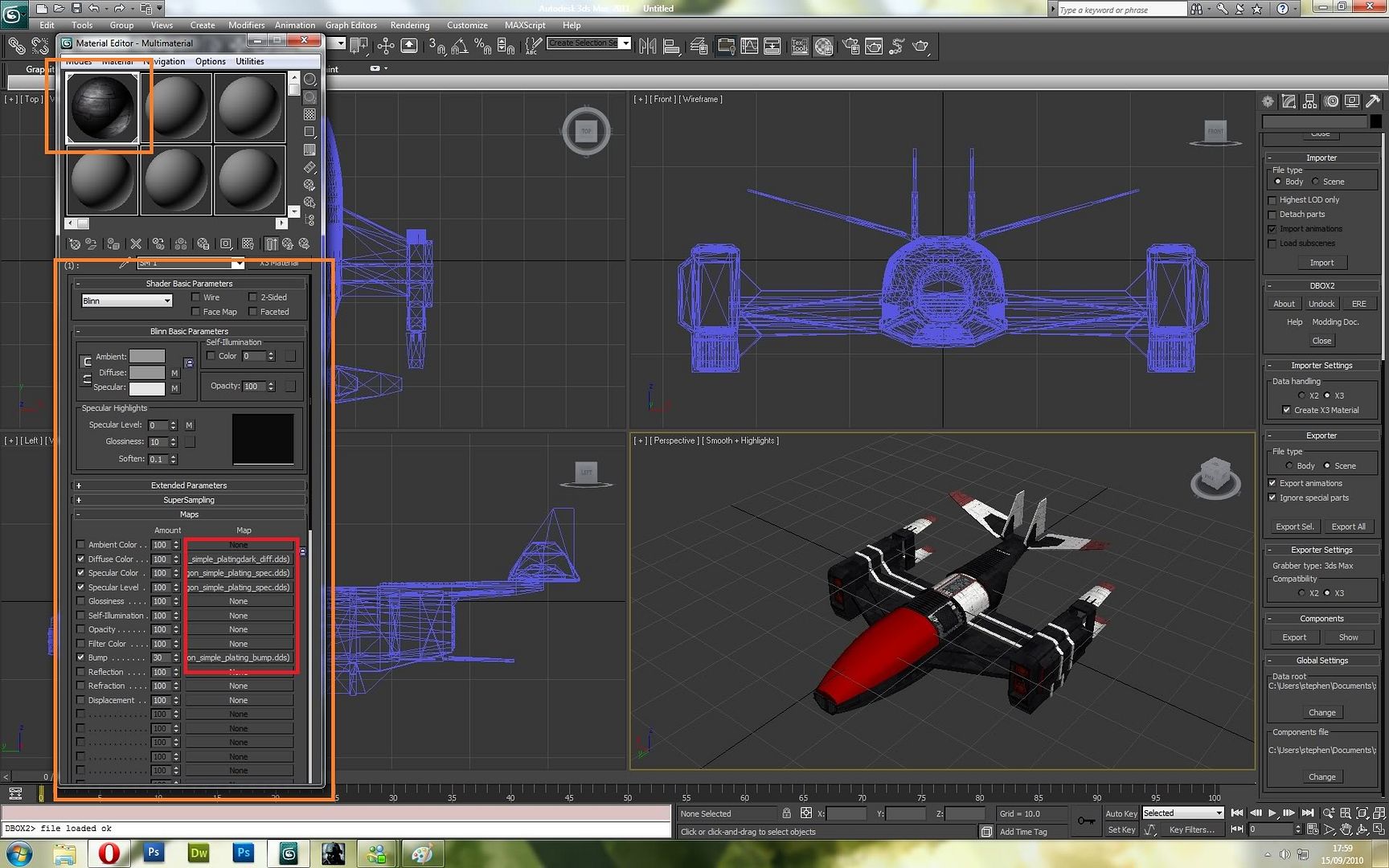

Image 2 shows what you should get when you click on one mat entry.

The red square is where the textures need to be changed to your own ones.

http://i45.photobucket.com/albums/f60/k ... /step3.jpg

Image 3 shows the shader, and the Mat definition. Only change the shader here if you want a different one.

All materials should say X3 material (as shown in image 2).

Hope that clears up any problems.

Anubitus · Post by **Anubitus** » Fri, 17. Sep 10, 01:22

i dont know..i thought with x3 materials, ppl ment the dds files that are in the dds folder of the game..

i took a standard material from the materials/standard section in the slate materials editor.. now just when i went back i can see that there is a x3 material option a bit further down..

ill try it out tomorow.. need to get up early tomorow.. past few days now.. no time.. argh.. i should take a week.. what am i saying, a few weeks off for this..

thanks guys..

Anubitus · Post by **Anubitus** » Fri, 17. Sep 10, 17:33

Code: Select all

MATERIAL6: 0; 0x2000000; 1; ; 4; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_plating_v5_diff.dds; t_SpecularTexture;SPTYPE_STRING;NULL; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_LightMapTexture;SPTYPE_STRING;NULL;
MATERIAL6: 1; 0x2000000; 1; ; 4; t_DiffuseTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_light.dds; t_SpecularTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_spec.dds; t_BumpTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_bump.dds; t_LightMapTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_light.dds;
MATERIAL6: 2; 0x2000000; 1; ; 4; t_DiffuseTexture;SPTYPE_STRING;glass_variations_diff.dds; t_SpecularTexture;SPTYPE_STRING;NULL; t_BumpTexture;SPTYPE_STRING;NULL; t_LightMapTexture;SPTYPE_STRING;NULL;
MATERIAL6: 3; 0; NULL; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; NULL;30; NULL;100; NULL;100; NULL;0; // Material #765
MATERIAL6: 4; 0x2000000; 1; ; 4; t_DiffuseTexture;SPTYPE_STRING;metal_argon_pipes_tech_diff.dds; t_SpecularTexture;SPTYPE_STRING;NULL; t_BumpTexture;SPTYPE_STRING;metal_argon_pipes_tech_bump.dds; t_LightMapTexture;SPTYPE_STRING;metal_argon_pipes_tech_light.dds;
MATERIAL6: 5; 0x2000000; 1; ; 4; t_DiffuseTexture;SPTYPE_STRING;metal_argon_circular_diff.dds; t_SpecularTexture;SPTYPE_STRING;NULL; t_BumpTexture;SPTYPE_STRING;metal_argon_circular_bump.dds; t_LightMapTexture;SPTYPE_STRING;metal_argon_circular_light.dds;

is this any better..?

killerog · Post by **killerog** » Fri, 17. Sep 10, 17:50

Nope. It needs to look like the one I posted. Only editing you do to the texture at a basic level is the texture names.

Anubitus · Post by **Anubitus** » Fri, 17. Sep 10, 17:54

yes yes, i know.. but topcross said that the materials i exported from max wherent x3 materials.. now i used the x3 materials instead of the standard one.. so is this correct then..?

this is from the body file i exported from max BEFOR i altered it..

if i know i did it right this time, that i used the correct materials for the body, then i can change it to the example you gave me..

if not, i ll have to start over..

thanks

Topcross · Post by **Topcross** » Fri, 17. Sep 10, 18:25

What you did was select X3 material from the list, haven't really tried this as I use the vanilla textures, but I don't think that works properly. You should import a vanilla ship, and change the textures, like killerog explained, that should give you a properly working X3 texture.

Anubitus · Post by **Anubitus** » Sat, 18. Sep 10, 15:19

okay..

so, i did misunderstand what you guys said..

i think i done it right this time..

imported a titan into the scene
deleted the titan
opened the materials editor, the compact one
selected the part of the interceptor i wanted to texture
took a material from the list, dragged it over the selected interceptor part
repeated this till ship was textured
callapsed and resseted the x-form
exported the body and scene

is this the right flow of actions..?

this is the materials part of the exported body file..

Code: Select all

MATERIAL6: 0; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_base_metal_plating_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_base_metal_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.0; t_SpecularTexture;SPTYPE_STRING;metal_argon_base_metal_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NONE_BLACK.dds; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;0.0; p_TexTiling;SPTYPE_FLOAT;1.0; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.0; g_MatMinFresnel;SPTYPE_FLOAT;0.0; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;
MATERIAL6: 1; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_WHITE.dds; t_BumpTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.0; t_SpecularTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_spec.dds; t_LightMapTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_light.dds; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;0.0; p_TexTiling;SPTYPE_FLOAT;1.0; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.0; g_MatMinFresnel;SPTYPE_FLOAT;0.0; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;
MATERIAL6: 2; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;0; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.59999; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_specialglass_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;metals\argon\metal_argon_specialglass_alpha8.tga; t_BumpTexture;SPTYPE_STRING;NONE_NORMAL.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.0; t_SpecularTexture;SPTYPE_STRING;metal_argon_specialglass_spec.dds; t_LightMapTexture;SPTYPE_STRING;NONE_BLACK.dds; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;0.0; p_TexTiling;SPTYPE_FLOAT;1.0; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.0; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;
MATERIAL6: 3; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_base_metal_plating_v2_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_base_metal_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.0; t_SpecularTexture;SPTYPE_STRING;metal_argon_base_metal_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NONE_BLACK.dds; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;metals\argon\metal_argon_base_metal_plating_bump.tga; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;0.0; p_TexTiling;SPTYPE_FLOAT;1.0; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.0; g_MatMinFresnel;SPTYPE_FLOAT;0.0; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;

if this is correct, what(how) exacly do i change (this) to make this work..?

i dont understand what exacly i have to change in your example to get my textures working..

kilerog's example:

Code: Select all

MATERIAL6: 0; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;1.0; g_MatSpecularPower;SPTYPE_FLOAT;10.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_simple_platingdark_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 2008\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;metal_argon_simple_plating_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.2; t_SpecularTexture;SPTYPE_STRING;metal_argon_simple_plating_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_OcclusionTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_OCCL_DECAL.DDS; g_MatOcclStr;SPTYPE_FLOAT;1.0; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;D:\X3.5\shaderfx\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.0; g_NormalDetailStr;SPTYPE_FLOAT;1.0; p_TexTiling;SPTYPE_FLOAT;10.0; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; g_Brightness;SPTYPE_FLOAT;1.0; g_Contrast;SPTYPE_FLOAT;1.0; g_Saturation;SPTYPE_FLOAT;1.0; g_Hue;SPTYPE_FLOAT;0.0; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.0; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.0; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.0; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.0;0.0; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.0; g_Color_LinesPower;SPTYPE_FLOAT;9.0; g_Color_HighlightPower;SPTYPE_FLOAT;12.0; g_Color_Weighting;SPTYPE_FLOAT;0.5; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;-1; technique;SPTYPE_LONG;0;

so much text, i cant make heads nor tales from this..

killerog · Post by **killerog** » Sat, 18. Sep 10, 15:31

Ignore all that text in the text editor. Thats for advance texture controls ect.

In 3dmax simply change the texture to your own one. Show in the red box :: http://i45.photobucket.com/albums/f60/k ... /step2.jpg

Anubitus · Post by **Anubitus** » Sat, 18. Sep 10, 22:32

thanks for the info killerog, but im going to stick with the x3 textures for now and save the texturing for when my skills are a bit better and im at least able to get ships in the game..

so..

here is a screenie of my max scene, on the left side you can see the mat editor, showing the x3 "argon_M2_OCC_N_scene" multitexture.. i used the first one for the hull of the interceptor, the one with ID 39 for the engine exhaust, the one ID 44 for the piece where the front laser is mounted and the one with ID 50 for the cockpit glass..

[ external image ]

now when i export this into a bod file, i get this error message..

[ external image ]

the exported .BOD file is empty..

thanks for the patience guys..

killerog · Post by **killerog** » Sat, 18. Sep 10, 22:34

That is an error that is a pain. Only way to deal with it is to re texture your model from scratch again (quick in your case).

Anubitus · Post by **Anubitus** » Sat, 18. Sep 10, 23:15

started over..

corvette this time, just a body and a cameradummy.. shouldnt be too hard.. *sigh*

textured it as described above.. other mat ID's but anyhow, its textured.. exported both the body and the scene.. no error this time..

this is what the body file mat entries look like..

Code: Select all


MATERIAL6: 0; 0x2000000; 1; argon.fx; 57; diffcompression;SPTYPE_BOOL;0; bumpcompression;SPTYPE_BOOL;0; speccompression;SPTYPE_BOOL;0; lightcompression;SPTYPE_BOOL;0; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;0.5; g_MatReflectionBias;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;1.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;8; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_antennas-B_04_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;metals\argon\metal_argon_antennas-B_04_alpha.tga; t_BumpTexture;SPTYPE_STRING;metal_argon_antennas-B_04_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; t_SpecularTexture;SPTYPE_STRING;metal_argon_antennas-B_04_spec.dds; t_LightMapTexture;SPTYPE_STRING;metal_argon_antennas-B_04_light.dds; t_CubeMapTexture;SPTYPE_STRING;effects\others\envmap_test.dds;
MATERIAL6: 1; 0x2000000; 1; argon.fx; 57; diffcompression;SPTYPE_BOOL;0; bumpcompression;SPTYPE_BOOL;0; speccompression;SPTYPE_BOOL;0; lightcompression;SPTYPE_BOOL;0; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;0.5; g_MatReflectionBias;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;1.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;8; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_exhaust_source_02_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;metals\argon\metal_argon_lattice_grid_alpha.tga; t_BumpTexture;SPTYPE_STRING;metal_argon_exhaust_source_02_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; t_SpecularTexture;SPTYPE_STRING;metal_argon_exhaust_source_02_spec.dds; t_LightMapTexture;SPTYPE_STRING;metal_argon_exhaust_source_02_light.dds; t_CubeMapTexture;SPTYPE_STRING;effects\others\envmap_test.dds;
MATERIAL6: 2; 0x2000000; 1; argon.fx; 57; diffcompression;SPTYPE_BOOL;0; bumpcompression;SPTYPE_BOOL;0; speccompression;SPTYPE_BOOL;0; lightcompression;SPTYPE_BOOL;0; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;0.5; g_MatReflectionBias;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;1.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;8; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;metals\argon\metal_argon_lattice_grid_alpha.tga; t_BumpTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; t_SpecularTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_spec.dds; t_LightMapTexture;SPTYPE_STRING;metal_argon_exhaust_source_01_light.dds; t_CubeMapTexture;SPTYPE_STRING;effects\others\envmap_test.dds;
MATERIAL6: 3; 0x2000000; 1; argon.fx; 57; diffcompression;SPTYPE_BOOL;0; bumpcompression;SPTYPE_BOOL;0; speccompression;SPTYPE_BOOL;0; lightcompression;SPTYPE_BOOL;0; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;0; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;0.5; g_MatReflectionBias;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;1.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;8; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_lattice_windowedgrid_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;metals\argon\metal_argon_lattice_windowedgrid_alpha8.tga; t_BumpTexture;SPTYPE_STRING;metal_argon_lattice_windowedgrid_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; t_SpecularTexture;SPTYPE_STRING;metal_argon_lattice_windowedgrid_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_CubeMapTexture;SPTYPE_STRING;effects\others\envmap_test.dds;
MATERIAL6: 4; 0x2000000; 1; argon.fx; 57; diffcompression;SPTYPE_BOOL;0; bumpcompression;SPTYPE_BOOL;0; speccompression;SPTYPE_BOOL;0; lightcompression;SPTYPE_BOOL;0; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;6.0; g_MatReflectionStrength;SPTYPE_FLOAT;0.5; g_MatReflectionBias;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;1.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;8; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;metal_argon_exhaust_trims_01_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.5; t_AlphaTexture;SPTYPE_STRING;NULL; t_BumpTexture;SPTYPE_STRING;metal_argon_exhaust_trims_01_bump.dds; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.0; t_FilterTypeBump;SPTYPE_LONG;2; t_SpecularTexture;SPTYPE_STRING;metal_argon_exhaust_trims_01_spec.dds; t_LightMapTexture;SPTYPE_STRING;NULL; t_CubeMapTexture;SPTYPE_STRING;effects\others\envmap_test.dds;
MATERIAL6: 5; 0; NULL; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; NULL;30; NULL;100; NULL;100; NULL;0; // Material #1727
MATERIAL6: 6; 0x2000000; 1; glass.fx; 60; diffcompression;SPTYPE_BOOL;0; bumpcompression;SPTYPE_BOOL;0; speccompression;SPTYPE_BOOL;0; lightcompression;SPTYPE_BOOL;0; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.0; TexAnimStartV;SPTYPE_FLOAT;0.0; TexAnimEndU;SPTYPE_FLOAT;0.0; TexAnimEndV;SPTYPE_FLOAT;0.0; TexAnimDuration;SPTYPE_FLOAT;0.0; TexAnimRotation;SPTYPE_FLOAT;0.0; TexAnimOriginU;SPTYPE_FLOAT;0.5; TexAnimOriginV;SPTYPE_FLOAT;0.5; Brightness;SPTYPE_FLOAT;1.0; contrast;SPTYPE_FLOAT;1.0; saturation;SPTYPE_FLOAT;1.0; hue;SPTYPE_FLOAT;0.0; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; g_MatSpecularStrength;SPTYPE_FLOAT;3.0; g_MatSpecularPower;SPTYPE_FLOAT;3.0; g_MatReflectionStrength;SPTYPE_FLOAT;1.0; g_MatReflectionBlur;SPTYPE_FLOAT;0.0; g_AlphaValue;SPTYPE_FLOAT;1.0; g_MatEmissiveColor;SPTYPE_FLOAT4;0.0;0.0;0.0;0.0; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.0; t_DiffuseTexture;SPTYPE_STRING;glass_variations_diff.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;1.0; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 9\Maps\NONE_WHITE.DDS; t_SpecularTexture;SPTYPE_STRING;glass_variations_spec.dds; t_CubeMapTexture;SPTYPE_STRING;I:\Exomod\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.0; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.0;1.0;1.0;0.0; effectfile;SPTYPE_STRING;glass.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;1702130277; technique;SPTYPE_LONG;0; t_BumpTexture;SPTYPE_STRING;NULL; t_LightMapTexture;SPTYPE_STRING;NULL;

how does that look so far..?

ps: i noticed that when i have 7 groups of poligons i have 7 mat entries (each for every group of polygons) but they are numbered starting from 0 and not from 1 while in max they start from 1..

the

Code: Select all

MATERIAL6: 5; 0; NULL; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; NULL;30; NULL;100; NULL;100; NULL;0; // Material #1727

entry is not used, i know its sloppy but i skipped polygon group number 6 for some reason..

EDIT: just tested it, invissible ofcourse.. i expected this tho..

so now i have to replace the texture entries with the correct ones from the "titan" body file.. is this correct..?

and if it is, if i used texture ID1 in max then i have to take texture entry 0 from the file right..? since they start from 0 and not form 1..?

Topcross · Post by **Topcross** » Sat, 18. Sep 10, 23:37

The number of MAT entries is the same, instead of 1-7 its 0-6, that's exacly the same.

So 0 in your text editor is 1 from 3ds max, 1 is 2, 2 is 3, ... .

And yes, import a vanilla ship, and edit the submats one by one, changing the paths of the pictures, and give it the right shader. Copy vanilla entries if you need more, or delete the leftovers if you have to many. (All of this in 3ds max, not in a texteditor ofcourse:p).

Look at what killerog posted a while back, his screenshots show what you should replace.

Remember to export your textures as .dds and place them in the right folder.

Anubitus · Post by **Anubitus** » Sat, 18. Sep 10, 23:39

i think i have corrected the mat entries in the .BOD file now

they look like this now:

Code: Select all

MATERIAL6: 0; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.000000; TexAnimStartV;SPTYPE_FLOAT;0.000000; TexAnimEndU;SPTYPE_FLOAT;0.000000; TexAnimEndV;SPTYPE_FLOAT;0.000000; TexAnimDuration;SPTYPE_FLOAT;0.000000; TexAnimRotation;SPTYPE_FLOAT;0.000000; TexAnimOriginU;SPTYPE_FLOAT;0.500000; TexAnimOriginV;SPTYPE_FLOAT;0.500000; Brightness;SPTYPE_FLOAT;1.000000; contrast;SPTYPE_FLOAT;1.000000; saturation;SPTYPE_FLOAT;1.000000; hue;SPTYPE_FLOAT;0.000000; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; g_MatSpecularStrength;SPTYPE_FLOAT;3.000000; g_MatSpecularPower;SPTYPE_FLOAT;6.000000; g_MatReflectionStrength;SPTYPE_FLOAT;1.000000; g_MatReflectionBlur;SPTYPE_FLOAT;0.000000; g_AlphaValue;SPTYPE_FLOAT;1.000000; g_MatEmissiveColor;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.000000; t_DiffuseTexture;SPTYPE_STRING;metals\argon\metal_argon_antennas-B_04_diff.tga; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.500000; t_AlphaTexture;SPTYPE_STRING;metals\argon\metal_argon_antennas-B_04_alpha.tga; t_BumpTexture;SPTYPE_STRING;metals\argon\metal_argon_antennas-B_04_bump.tga; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.000000; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.000000; t_SpecularTexture;SPTYPE_STRING;metals\argon\metal_argon_antennas-B_04_spec.tga; t_LightMapTexture;SPTYPE_STRING;metals\argon\metal_argon_antennas-B_04_light.tga; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.000000; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.000000; g_NormalDetailStr;SPTYPE_FLOAT;0.000000; p_TexTiling;SPTYPE_FLOAT;1.000000; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.000000; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; g_Brightness;SPTYPE_FLOAT;1.000000; g_Contrast;SPTYPE_FLOAT;1.000000; g_Saturation;SPTYPE_FLOAT;1.000000; g_Hue;SPTYPE_FLOAT;0.000000; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.000000; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.000000; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.000000; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.000000;0.000000; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.000000; g_Color_LinesPower;SPTYPE_FLOAT;9.000000; g_Color_HighlightPower;SPTYPE_FLOAT;12.000000; g_Color_Weighting;SPTYPE_FLOAT;0.500000; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;
MATERIAL6: 1; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.000000; TexAnimStartV;SPTYPE_FLOAT;0.000000; TexAnimEndU;SPTYPE_FLOAT;0.000000; TexAnimEndV;SPTYPE_FLOAT;0.000000; TexAnimDuration;SPTYPE_FLOAT;0.000000; TexAnimRotation;SPTYPE_FLOAT;0.000000; TexAnimOriginU;SPTYPE_FLOAT;0.500000; TexAnimOriginV;SPTYPE_FLOAT;0.500000; Brightness;SPTYPE_FLOAT;1.000000; contrast;SPTYPE_FLOAT;1.000000; saturation;SPTYPE_FLOAT;1.000000; hue;SPTYPE_FLOAT;0.000000; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; g_MatSpecularStrength;SPTYPE_FLOAT;3.000000; g_MatSpecularPower;SPTYPE_FLOAT;6.000000; g_MatReflectionStrength;SPTYPE_FLOAT;1.000000; g_MatReflectionBlur;SPTYPE_FLOAT;0.000000; g_AlphaValue;SPTYPE_FLOAT;1.000000; g_MatEmissiveColor;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.000000; t_DiffuseTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_02_diff.tga; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.500000; t_AlphaTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_WHITE.dds; t_BumpTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_02_bump.tga; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.000000; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.000000; t_SpecularTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_02_spec.tga; t_LightMapTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_02_light.tga; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.000000; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.000000; g_NormalDetailStr;SPTYPE_FLOAT;0.000000; p_TexTiling;SPTYPE_FLOAT;1.000000; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.000000; g_MatMinFresnel;SPTYPE_FLOAT;0.000000; g_Color_Envipaint;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; g_Brightness;SPTYPE_FLOAT;1.000000; g_Contrast;SPTYPE_FLOAT;1.000000; g_Saturation;SPTYPE_FLOAT;1.000000; g_Hue;SPTYPE_FLOAT;0.000000; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.000000; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.000000; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.000000; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.000000;0.000000; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.000000; g_Color_LinesPower;SPTYPE_FLOAT;9.000000; g_Color_HighlightPower;SPTYPE_FLOAT;12.000000; g_Color_Weighting;SPTYPE_FLOAT;0.500000; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;
MATERIAL6: 2; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.000000; TexAnimStartV;SPTYPE_FLOAT;0.000000; TexAnimEndU;SPTYPE_FLOAT;0.000000; TexAnimEndV;SPTYPE_FLOAT;0.000000; TexAnimDuration;SPTYPE_FLOAT;0.000000; TexAnimRotation;SPTYPE_FLOAT;0.000000; TexAnimOriginU;SPTYPE_FLOAT;0.500000; TexAnimOriginV;SPTYPE_FLOAT;0.500000; Brightness;SPTYPE_FLOAT;1.000000; contrast;SPTYPE_FLOAT;1.000000; saturation;SPTYPE_FLOAT;1.000000; hue;SPTYPE_FLOAT;0.000000; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; g_MatSpecularStrength;SPTYPE_FLOAT;3.000000; g_MatSpecularPower;SPTYPE_FLOAT;6.000000; g_MatReflectionStrength;SPTYPE_FLOAT;1.000000; g_MatReflectionBlur;SPTYPE_FLOAT;0.000000; g_AlphaValue;SPTYPE_FLOAT;1.000000; g_MatEmissiveColor;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.000000; t_DiffuseTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_01_diff.tga; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.500000; t_AlphaTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_WHITE.dds; t_BumpTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_01_bump.tga; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.000000; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.000000; t_SpecularTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_01_spec.tga; t_LightMapTexture;SPTYPE_STRING;metals\argon\metal_argon_exhaust_source_01_light.tga; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.000000; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.000000; g_NormalDetailStr;SPTYPE_FLOAT;0.000000; p_TexTiling;SPTYPE_FLOAT;1.000000; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.000000; g_MatMinFresnel;SPTYPE_FLOAT;0.000000; g_Color_Envipaint;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; g_Brightness;SPTYPE_FLOAT;1.000000; g_Contrast;SPTYPE_FLOAT;1.000000; g_Saturation;SPTYPE_FLOAT;1.000000; g_Hue;SPTYPE_FLOAT;0.000000; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.000000; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.000000; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.000000; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.000000;0.000000; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.000000; g_Color_LinesPower;SPTYPE_FLOAT;9.000000; g_Color_HighlightPower;SPTYPE_FLOAT;12.000000; g_Color_Weighting;SPTYPE_FLOAT;0.500000; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;
MATERIAL6: 3; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.000000; TexAnimStartV;SPTYPE_FLOAT;0.000000; TexAnimEndU;SPTYPE_FLOAT;0.000000; TexAnimEndV;SPTYPE_FLOAT;0.000000; TexAnimDuration;SPTYPE_FLOAT;0.000000; TexAnimRotation;SPTYPE_FLOAT;0.000000; TexAnimOriginU;SPTYPE_FLOAT;0.500000; TexAnimOriginV;SPTYPE_FLOAT;0.500000; Brightness;SPTYPE_FLOAT;1.000000; contrast;SPTYPE_FLOAT;1.000000; saturation;SPTYPE_FLOAT;1.000000; hue;SPTYPE_FLOAT;0.000000; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;1; g_AlphaBlendEnable;SPTYPE_LONG;1; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;5; g_DestBlend;SPTYPE_LONG;6; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;1; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; g_MatSpecularStrength;SPTYPE_FLOAT;3.000000; g_MatSpecularPower;SPTYPE_FLOAT;6.000000; g_MatReflectionStrength;SPTYPE_FLOAT;1.000000; g_MatReflectionBlur;SPTYPE_FLOAT;0.000000; g_AlphaValue;SPTYPE_FLOAT;1.000000; g_MatEmissiveColor;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.000000; t_DiffuseTexture;SPTYPE_STRING;metals\argon\metal_argon_lattice_windowedgrid_diff.tga; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.500000; t_AlphaTexture;SPTYPE_STRING;metals\argon\metal_argon_lattice_windowedgrid_alpha8.tga; t_BumpTexture;SPTYPE_STRING;metals\argon\metal_argon_lattice_windowedgrid_bump.tga; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.000000; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.000000; t_SpecularTexture;SPTYPE_STRING;metals\argon\metal_argon_lattice_windowedgrid_spec.tga; t_LightMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_BLACK.DDS; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.000000; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.000000; g_NormalDetailStr;SPTYPE_FLOAT;0.000000; p_TexTiling;SPTYPE_FLOAT;1.000000; t_CubeMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.000000; g_MatMinFresnel;SPTYPE_FLOAT;0.000000; g_Color_Envipaint;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; g_Brightness;SPTYPE_FLOAT;1.000000; g_Contrast;SPTYPE_FLOAT;1.000000; g_Saturation;SPTYPE_FLOAT;1.000000; g_Hue;SPTYPE_FLOAT;0.000000; g_Color_1;SPTYPE_FLOAT4;0.309998;0.299988;0.069992;0.000000; g_Color_2;SPTYPE_FLOAT4;0.299988;0.279999;0.089996;0.000000; g_Color_3;SPTYPE_FLOAT4;0.099991;0.279999;0.299988;0.000000; g_Color_Lines;SPTYPE_FLOAT4;0.339996;0.289993;0.000000;0.000000; g_Color_Highlight;SPTYPE_FLOAT4;0.599991;0.099991;0.099991;0.000000; g_Color_LinesPower;SPTYPE_FLOAT;9.000000; g_Color_HighlightPower;SPTYPE_FLOAT;12.000000; g_Color_Weighting;SPTYPE_FLOAT;0.500000; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;16; technique;SPTYPE_LONG;0;
MATERIAL6: 4; 0x2000000; 1; XT_standard_lighting.fx; 80; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.000000; TexAnimStartV;SPTYPE_FLOAT;0.000000; TexAnimEndU;SPTYPE_FLOAT;0.000000; TexAnimEndV;SPTYPE_FLOAT;0.000000; TexAnimDuration;SPTYPE_FLOAT;0.000000; TexAnimRotation;SPTYPE_FLOAT;0.000000; TexAnimOriginU;SPTYPE_FLOAT;0.500000; TexAnimOriginV;SPTYPE_FLOAT;0.500000; Brightness;SPTYPE_FLOAT;1.029999; contrast;SPTYPE_FLOAT;1.001999; saturation;SPTYPE_FLOAT;7.209991; hue;SPTYPE_FLOAT;217.871994; colormatrix;SPTYPE_BOOL;1; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; g_MatSpecularStrength;SPTYPE_FLOAT;3.000000; g_MatSpecularPower;SPTYPE_FLOAT;6.000000; g_MatReflectionStrength;SPTYPE_FLOAT;1.000000; g_MatReflectionBlur;SPTYPE_FLOAT;0.000000; g_AlphaValue;SPTYPE_FLOAT;1.000000; g_MatEmissiveColor;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.000000; t_DiffuseTexture;SPTYPE_STRING;metals\argon\metal_argon_vent_diff.tga; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.500000; t_AlphaTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_WHITE.dds; t_BumpTexture;SPTYPE_STRING;metals\argon\metal_argon_vent_bump.tga; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.000000; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.000000; t_SpecularTexture;SPTYPE_STRING;metals\argon\metal_argon_vent_spec.tga; t_LightMapTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_BLACK.dds; t_OcclusionTexture;SPTYPE_STRING;C:\Documents and Settings\Mox\Desktop\GREEBLE\argon_M2_N_occl.tga; g_MatOcclStr;SPTYPE_FLOAT;1.000000; g_bIsDecalMap;SPTYPE_BOOL;0; t_DetailTexture;SPTYPE_STRING;C:\3ds Max 9\Maps\NONE_NORMAL_DETAIL.DDS; p_DetailMapBlendWeight;SPTYPE_FLOAT;1.000000; g_NormalDetailStr;SPTYPE_FLOAT;0.000000; p_TexTiling;SPTYPE_FLOAT;1.000000; t_CubeMapTexture;SPTYPE_STRING;D:\X3.5\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;1.000000; g_MatMinFresnel;SPTYPE_FLOAT;0.000000; g_Color_Envipaint;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; g_Brightness;SPTYPE_FLOAT;1.029999; g_Contrast;SPTYPE_FLOAT;1.001999; g_Saturation;SPTYPE_FLOAT;7.209991; g_Hue;SPTYPE_FLOAT;217.871994; g_Color_1;SPTYPE_FLOAT4;0.870575;0.803909;0.066666;0.000000; g_Color_2;SPTYPE_FLOAT4;0.415680;0.141174;0.086273;0.000000; g_Color_3;SPTYPE_FLOAT4;0.588226;0.098038;0.098038;0.000000; g_Color_Lines;SPTYPE_FLOAT4;0.933319;0.811752;0.000000;0.000000; g_Color_Highlight;SPTYPE_FLOAT4;0.745087;0.129410;0.098038;0.000000; g_Color_LinesPower;SPTYPE_FLOAT;50.000000; g_Color_HighlightPower;SPTYPE_FLOAT;10.000000; g_Color_Weighting;SPTYPE_FLOAT;0.500000; g_bColor_Mixing;SPTYPE_BOOL;0; effectfile;SPTYPE_STRING;XT_standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;0; technique;SPTYPE_LONG;0;
MATERIAL6: 5; 0; NULL; 149;149;149; 149;149;149; 229;229;229; 0; 0; 10; 0; 0;0;0; 100; NULL;100; NULL;30; NULL;100; NULL;100; NULL;0; // Material #1727
MATERIAL6: 6; 0x2000000; 1; standard_lighting.fx; 68; diffcompression;SPTYPE_BOOL;0; bumpcompression;SPTYPE_BOOL;0; speccompression;SPTYPE_BOOL;0; lightcompression;SPTYPE_BOOL;0; nofiltering;SPTYPE_BOOL;0; autofree;SPTYPE_BOOL;0; Tex2;SPTYPE_BOOL;0; TexAnimStartU;SPTYPE_FLOAT;0.000000; TexAnimStartV;SPTYPE_FLOAT;0.000000; TexAnimEndU;SPTYPE_FLOAT;0.000000; TexAnimEndV;SPTYPE_FLOAT;0.000000; TexAnimDuration;SPTYPE_FLOAT;0.000000; TexAnimRotation;SPTYPE_FLOAT;0.000000; TexAnimOriginU;SPTYPE_FLOAT;0.500000; TexAnimOriginV;SPTYPE_FLOAT;0.500000; Brightness;SPTYPE_FLOAT;1.000000; contrast;SPTYPE_FLOAT;1.000000; saturation;SPTYPE_FLOAT;1.000000; hue;SPTYPE_FLOAT;0.000000; colormatrix;SPTYPE_BOOL;0; g_ColorWriteEnable;SPTYPE_LONG;15; g_Wrap;SPTYPE_LONG;0; g_CullMode;SPTYPE_LONG;2; g_AlphaBlendEnable;SPTYPE_LONG;0; g_BlendOp;SPTYPE_LONG;1; g_SrcBlend;SPTYPE_LONG;2; g_DestBlend;SPTYPE_LONG;1; g_ZEnable;SPTYPE_LONG;1; g_ZWriteEnable;SPTYPE_LONG;1; g_ALPHATESTENABLE;SPTYPE_LONG;0; g_LightAmbientIntensity;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; LightDir_Dir0;SPTYPE_LONG;0; LightDir_Color0;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; LightDir_Dir1;SPTYPE_LONG;0; LightDir_Color1;SPTYPE_FLOAT4;0.000000;0.000000;0.000000;0.000000; g_MatSpecularStrength;SPTYPE_FLOAT;1.000000; g_MatSpecularPower;SPTYPE_FLOAT;10.000000; g_MatReflectionStrength;SPTYPE_FLOAT;0.000000; g_MatReflectionBlur;SPTYPE_FLOAT;0.000000; g_AlphaValue;SPTYPE_FLOAT;1.000000; g_MatEmissiveColor;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; t_FilterTypeDiffuse;SPTYPE_LONG;2; t_SamplerAddressMode;SPTYPE_LONG;1; t_SamplerMaxAnisotropy;SPTYPE_LONG;4; t_MipMapLODBias;SPTYPE_FLOAT;0.000000; t_DiffuseTexture;SPTYPE_STRING;I:\Exomod\dds\unique_argon_M5_04_light.dds; t_MinFilterTypeDiffuse;SPTYPE_LONG;3; g_MatDiffuseStrength;SPTYPE_FLOAT;0.000000; t_AlphaTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 9\Maps\NONE_WHITE.DDS; t_BumpTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 9\Maps\NONE_NORMAL.DDS; t_MinFilterTypeBump;SPTYPE_LONG;3; t_BumpMipMapLODBias;SPTYPE_FLOAT;0.000000; t_FilterTypeBump;SPTYPE_LONG;2; g_BumpMapStrength;SPTYPE_FLOAT;1.000000; t_SpecularTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 9\Maps\NONE_WHITE.DDS; t_LightMapTexture;SPTYPE_STRING;C:\Program Files\Autodesk\3ds Max 9\Maps\NONE_BLACK.DDS; t_CubeMapTexture;SPTYPE_STRING;I:\Exomod\dds\envmap_test.dds; g_FresnelExpon;SPTYPE_FLOAT;2.000000; g_MatMinFresnel;SPTYPE_FLOAT;0.099991; g_Color_Envipaint;SPTYPE_FLOAT4;1.000000;1.000000;1.000000;0.000000; g_Brightness;SPTYPE_FLOAT;1.000000; g_Contrast;SPTYPE_FLOAT;1.000000; g_Saturation;SPTYPE_FLOAT;1.000000; g_Hue;SPTYPE_FLOAT;0.000000; effectfile;SPTYPE_STRING;standard_lighting.fx; renderEnabled;SPTYPE_BOOL;0; renderMaterial;SPTYPE_LONG;1634485053; technique;SPTYPE_LONG;0;

testing now..
